Case Study: 3D Rendering Project for a Single Family Home, Demarest, New Jersey

A well-known luxury home builder, Apex Lux Homes had contacted us with assistance required for 3D Rendering of a single family home. It’s new construction, currently being built on the wonderful Demarest East Hill street. The house comprises of over 5200 sq.ft of finished space offering a unique combination of luxury, style, and comfort. This house is well suited for entertaining as well as living a comfortable family life.

The house is built on three floors, with the main floor featuring a two-story foyer, great room with fireplace, gourmet kitchen and pantry, dining room with an attached butler pantry, living/media room, bedroom ensuite, powder room and mudroom leading from a two-car garage.

The second floor offers the master suite with fireplace and large walk-in closets, three additional ensuites, and laundry. The lower level offers a bedroom ensuite and an entertainment center loaded with amenities, including a game room, lounge/bar, gym, wine cellar, home theater, and a full bathroom. In the backyard, you will find a full outdoor kitchen and a gas fire pit.

Salient Features of the Bungalow

  • Area – 0.28 Acres
  • Floor Size – 5210 sq.ft
  • Configuration – 6 Bedrooms and Bathrooms – 8 Nos
  • Special Amenities – Barbeque Area, Wet bar.
  • Structure Type: Colonial
  • Roof type: Shake/Shingle
  • Exterior Material: Composite
  • Windows – Double Pane/Storm Windows

Step 1: Inputs for 3D Rendering

The client provided Rayvat Engineering with the following initial inputs.

  1. .dwg file of the elevations
  2. Architectural Plans PDF
  3. Reference Image for 3D Exterior Render for colors and styles

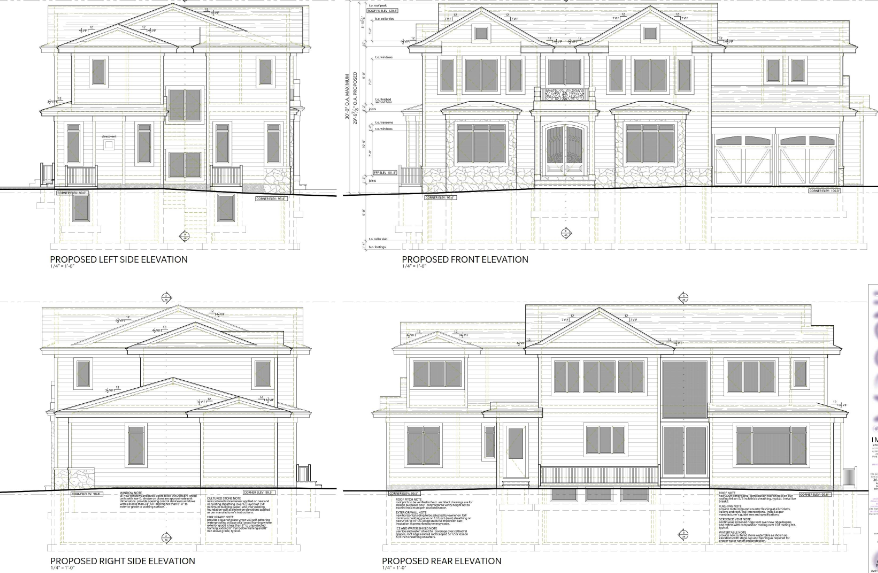

Elevation Details:

3D Rendering Project Case Study

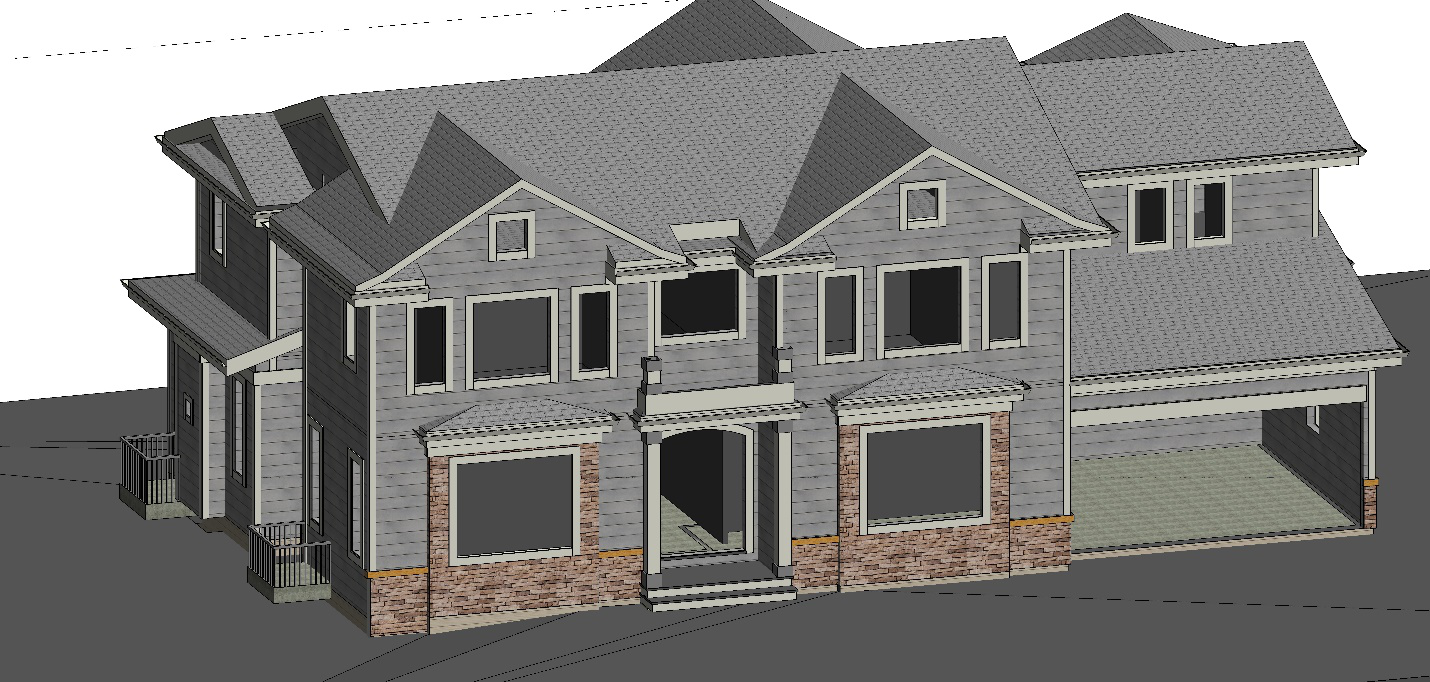

Step 2: 2D to 3D Modeling

For preparing the 3D Renderings, it is imperative to turn the 2D Plans comprising of elevations, floor plans, and sections into a 3D Wireframe model. For this, we utilize Autodesk Revit software.

In a timespan of 3 working days, Rayvat Engineering submitted 3D Revit model along with snapshots from different angles for client review. Post a couple of markups. The Revit 3D Model was approved for subsequent work of 3D Rendering.



3D Rendering Case Study

Step 3: Rendering Inputs for 3D Exteriors

Subsequent to freezing the 3D model, we move further with the application of finishing material like the ones listed below:

Siding: Hardie Plank Lap Siding
Color: Smooth Arctic White
Garage Doors: Reference image provided along with the detail of doors being black with windows at the top.
Stone Siding: Dark Rectangular pieces of 10″ x 6″ – Reference image provided.
Roofing: Black Shingles – Reference image provided.
Landscaping: Typical New Jersey Plantation – Reference images provided.
Camera Angle: 3/4th Camera Shot



Step 4: First Draft of Exterior Render

Based on the inputs, Rayvat Engineering provided the client with the first draft of 3D Rendering in 4 business days for feedback from Client.

3D Rendering Services Case Study

Feedback on First Draft Observations:

1. Windows are black
2. Corner trim is wider
3. Walkway is only between garage and front door

Note – It’s best if the renders itself are marked for corrections. Subjective emails can sometimes be confusing as it can be ambiguous. Click here to read our blog on How to provide the best feedback on 3D Renderings’.



Step 5: Second Draft of Exterior Rendering

Based on the feedback in the first round of markup, we submitted the second render in 2 business.



Case Study on 3D House Rendering

Feedback on the Second Draft

1. Garage door separator column to be checked.
2. Stone is not defined, it looks like brown paint on the walls.
3. A roof is blacker, (Ref provided)
4. No horizontal separators on the front windows
5. Stone Border around the Windows is wider in the plans

It is necessary to provide exhaustive feedback received from all stakeholders as mentioned in the previous step to make sure no changes are made at the time of final delivery, which is the final step in our journey.



Step 6: Final Delivery in HD

All the changes in the second round of markups were incorporated, and a HD quality final deliverable was submitted. At this stage, we provide images with the watermark. Once the payment has been made in full, renders without watermark are submitted. Any corrections at this stage would be chargeable.

3D Rendering Case Study

FINAL HD RENDER

3D Rendering Case Study Final Render
